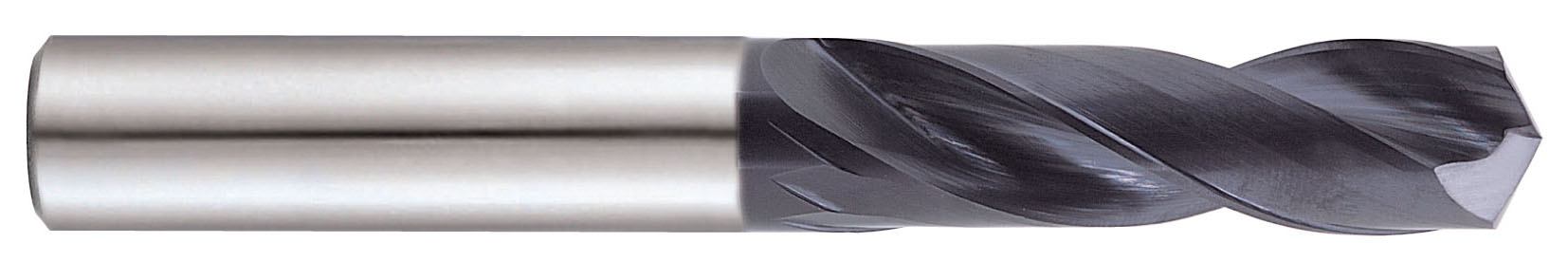

CARBIDE DREAM DRILL (3XD) – METRIC
DH404110
CARBIDE DREAM DRILL (3XD) – METRIC
| Weight | 0.245 lbs |
|---|---|
| Dimensions | 4.125 × 0.750 × 0.750 in |
| Size | |
| Point Length mm | 2.00 |
| Flute Length mm | 47.00 |
| Overall Length mm | 95.00 |
| Point Angle | 140° |
| Helix Angle | |
| Length/Diameter | 3XD |
| Shank Tolerance | h6 |
| Blank Standard | DIN 6539 |
| Hole Tolerance | h7 |
| Application | |
| Cutting Direction | |
| System of Measurement | mm |
| Brand | YG-1 |
| Point of Origin | Korea |
| Material | |
| Finish/Coating | TiAlN |
| Style | Solid Carbide Drills w/o Coolant Holes |
| Through Coolant Yes/No | No |
| Number of Flutes | 2 |
| Diameter mm | |
| Shank Diameter mm | 11.00 |
| Package Quantity | 1 |
| Shank Type |
